Chrome Plated Tubing: What Engineers Need to Know Before Specifying It

Published

on

Anyone sourcing parts for a hydraulic cylinder or a pneumatic system eventually runs into the same question: which material actually holds up under real pressure, day after day, without wearing out too soon? Chrome plated tubing has become the go to answer for a huge range of industrial applications, from mobile hydraulics to precision engineering, thanks to a rare mix of strength, smoothness, and resistance to wear.

Save up to $50 on Amazon Gift Cards Save Now

Getting the specification right matters more than most buyers realise at first glance. The wrong tube can mean leaking seals, early corrosion, or a cylinder that fails months before it should. This article looks at what chrome plated tubing actually is, why it performs so well under pressure, and what to check before placing an order with any supplier.

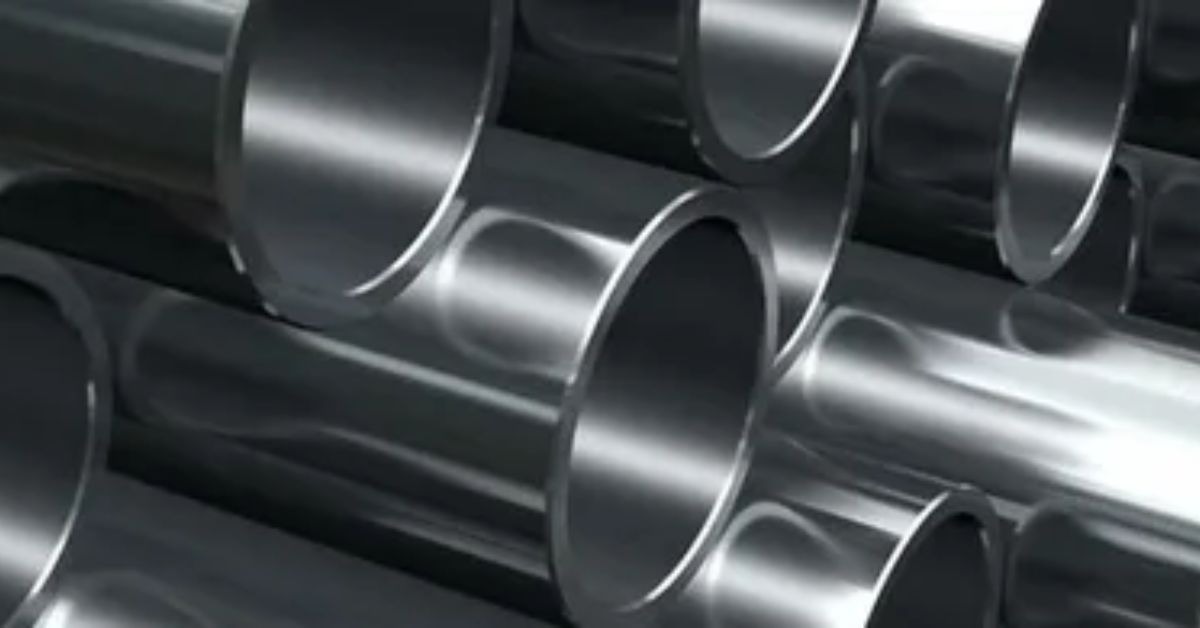

What Chrome Plated Tubing Actually Is

Chrome plated tubing starts life as a plain steel or alloy tube, which then gets coated with a thin, extremely hard layer of chromium through an electroplating process. That coating bonds tightly to the base metal, creating a surface that resists wear, corrosion, and scratching far better than untreated steel ever could on its own.

The plating thickness matters just as much as the base tube quality, since a coating that’s too thin wears through quickly under heavy use, while one that’s uneven can cause problems with how seals and pistons move against the surface. Reputable suppliers plate to a consistent thickness across the full length of the tube, checked carefully before it ever leaves their premises.

Why Hydraulic Systems Rely on It So Heavily

Hydraulic cylinders push and pull with enormous force, often thousands of times over the life of a machine, and the inside surface of the cylinder bore takes a real beating during every single stroke. Chrome plated tubing gives that surface the hardness it needs to resist scoring from seals, dirt, and constant friction, extending the working life of the whole cylinder considerably.

Beyond raw hardness, the chrome layer also gives an exceptionally smooth finish that reduces friction as the piston moves back and forth. Lower friction means less heat, less wear on seals and a system that runs more efficiently overall, which adds up to real savings on maintenance and downtime across a machine’s working life.

Honed Tubes and Why Surface Finish Matters

A tube’s surface finish plays just as big a role in performance as the material itself, which is why honing has become such a standard step before chrome plating even begins. Honing uses an abrasive tool to remove tiny imperfections from the inside of a tube, leaving behind a bore that’s dimensionally accurate and consistently smooth from one end to the other.

Getting the honing right matters more than most people outside the industry appreciate. A rough or uneven bore causes uneven wear on seals almost immediately, shortening the working life of a cylinder long before the metal itself would naturally fail.

Seamless Versus Welded Tubes

Seamless tubes are formed from a single solid piece of metal, drawn or extruded into shape without any weld seam running along their length. This gives them a genuinely consistent wall thickness and a stronger overall structure, which matters hugely in high pressure hydraulic applications where any weak point could fail under load.

Welded tubes, by contrast, are formed by rolling flat steel into a cylinder and welding the seam shut. While cheaper to produce, that seam introduces a potential weak point, making welded tube generally unsuitable for the highest pressure hydraulic uses where seamless construction remains the safer choice.

Induction Hardened Bar and Where It Fits

Alongside tubing, many suppliers also offer induction hardened bar for applications needing a solid, wear resistant rod rather than a hollow tube. The induction hardening process heats the surface of a steel bar rapidly, then cools it quickly, creating a hard outer layer while keeping the core more flexible and less brittle.

This combination suits piston rods and similar components that need to withstand heavy side loading as well as constant sliding friction, giving engineers another material option depending on exactly what a project demands.

Standard Versus Non-Standard Sizing

Most projects can be served by standard tube and bar sizes, which suppliers typically hold in stock and can despatch quickly without any custom manufacturing delay. Standard sizing tends to work out cheaper too, since it avoids the setup costs that come with producing something outside a supplier’s usual range.

Non-standard sizing becomes necessary for unusual or bespoke equipment, where an off the shelf size simply won’t fit the design. A good supplier should be upfront about lead times for non-standard orders, since these naturally take longer than pulling stock straight off the shelf.

Six Things to Check Before Ordering Chrome Plated Tubing

Placing an order without checking a few key details can lead to delays, mismatched parts, or a tube that simply doesn’t perform as expected once it’s fitted into a machine. A few quick checks upfront save a lot of hassle later on.

Here’s what’s worth confirming before you commit to an order.

  • Confirmed plating thickness and finish quality across the full tube length
  • Whether the tube is seamless or welded, and which your application needs
  • Material certification showing the tube meets relevant industry standards
  • Accurate bore honing to the tolerance your application actually requires
  • Realistic lead times, especially for non-standard sizes or large orders
  • A supplier holding proper quality accreditation, such as ISO 9001

Conclusion

Chrome plated tubing plays a quiet but essential role in countless hydraulic and industrial systems, and getting the specification right makes a real difference to how long a machine lasts before something needs replacing. Understanding plating thickness, honing quality, and the difference between seamless and welded construction helps engineers avoid costly mistakes. Choose a supplier who can back up their tubing with proper certification and consistent quality, and the parts you fit today should keep performing reliably for years to come.
